Weak Laboratory Vacuum: Leak Checks, Hose Restrictions and Pressure-Rise Tests
Approximately 9 minutes to read. Explore the Learning Hub
A vacuum gauge that stops falling does not identify the failed component. An air leak, wet apparatus, restricted hose, contaminated pump, unsuitable gauge or continuing vapor load can produce similar symptoms. Replacing the pump first may spend money without solving the problem. A better investigation defines the measurement, establishes a baseline and reconnects the system in controlled stages.
This tutorial covers diagnostic reasoning for empty, clean, nonreactive laboratory vacuum assemblies. It does not authorize vacuum service for glassware or chemicals lacking documented compatibility. You will learn how pressure differs from pumping speed, how a connection can limit performance without leaking, and what a pressure-rise calculation can and cannot establish. Worked examples are hypothetical and are not acceptance limits for VLS products.
Define the pressure before diagnosing it
Begin by writing down the units and reference. Absolute pressure is measured relative to vacuum; gauge pressure is measured relative to the local atmosphere. A mechanical dial near minus 30 inches of mercury cannot provide the same information as an instrument designed to resolve a small absolute pressure. Record the gauge type, useful range and location before interpreting a number.
A “micron” in vacuum reporting commonly means a micrometer of mercury, equal to 0.001 Torr. Thus 500 microns corresponds to 0.500 Torr, approximately 0.667 mbar. It does not mean 500 mbar. A report reading only “0.5 vacuum” is incomplete. State whether the reading is Torr, mbar, pascals or another unit, and whether it is absolute.
Locate the measurement in the flow path. While gas is moving, the pressure at a pump inlet can differ from the pressure at the vessel. A gauge near the pump may show an encouraging result while a long restrictive line leaves the working vessel at higher pressure. Comparing readings requires either the same measurement location or an explicit explanation of why the locations differ.
Gauge behavior also matters. Some gauges infer pressure from gas-dependent physical properties, and contamination can change their response. Check the specified gas, calibration requirements and exposure limits. An unstable or implausible reading should trigger an instrument check before it becomes the basis for an equipment purchase or a claim that the apparatus is leak-free.
Separate gas load from flow restriction
A real leak admits gas across an unintended opening. Outgassing releases material already present on surfaces or in seals; evaporation introduces gas from residual liquid. Permeation allows gas to move through a material without an obvious hole. A slowly emptying trapped pocket can behave like a continuing internal gas source. These mechanisms can coexist, which makes a single pressure value an ambiguous diagnosis.
The gas must also travel to the pump. Tubing, valves, adapters and traps impose flow resistance. Their combined conductance describes how readily gas moves through the path under the relevant conditions. Leybold explains that conductance depends on the pressure regime and component geometry. [1] A hose may be perfectly sealed yet still limit evacuation because it is narrow, long, bent or partly collapsed.
For a simplified single-path model at a specified operating condition, effective pumping speed at the vessel follows 1/Seff = 1/S + 1/C. Suppose pump inlet speed S is 2.0 liters per second and line conductance C is 0.50 liters per second. The effective speed is 0.40 liters per second. Doubling S to 4.0 raises Seff only to about 0.44. These assumed values show why improving a severe restriction can matter more than fitting a larger pump.
Do not calculate conductance from hose diameter using an arbitrary formula. Molecular-flow and viscous-flow expressions have different conditions of validity. Use the manufacturer’s method for the actual gas and pressure range, or compare controlled measurements. Likewise, a catalog CFM value is a flow specification, not proof of the pressure a complete laboratory assembly will achieve.
Establish a safe baseline
Make the equipment safe before testing. Remove process materials only under the approved shutdown and waste procedures. Cool hot parts, address trapped pressure and stored energy, and use the required ventilation and shielding. Inspect vessels and connections. Princeton and Illinois both emphasize suitable vacuum equipment and mechanical protection. [2,3] A diagnostic experiment is still a vacuum operation with implosion hazards.
Prepare a written test configuration using the pump manufacturer’s permitted inlet-blanking or baseline method. A qualified operator can test the pump and a compatible gauge through a short, rated connection, without the full apparatus attached. Use the manufacturer’s warm-up conditions, approved oil where applicable, and exhaust arrangements. Do not improvise an inlet plug or block the exhaust.
If that baseline is poor, investigate the short connection, gauge and pump before reconnecting everything. Verify power supply and maintenance condition against the exact model’s manual. For oil-sealed pumps, fluid condition, level and approved servicing can affect results. Opening a housing or electrical component is a service task, not a routine leak check. Do not flush a pump with an improvised solvent mixture.
Record baseline pressure versus time, rather than reporting only the lowest momentary number. State when warm-up began, when the inlet configuration was established and whether the gauge had stabilized. A baseline becomes useful when another operator can recreate it under comparable conditions, including the same gas exposure and instrument arrangement.

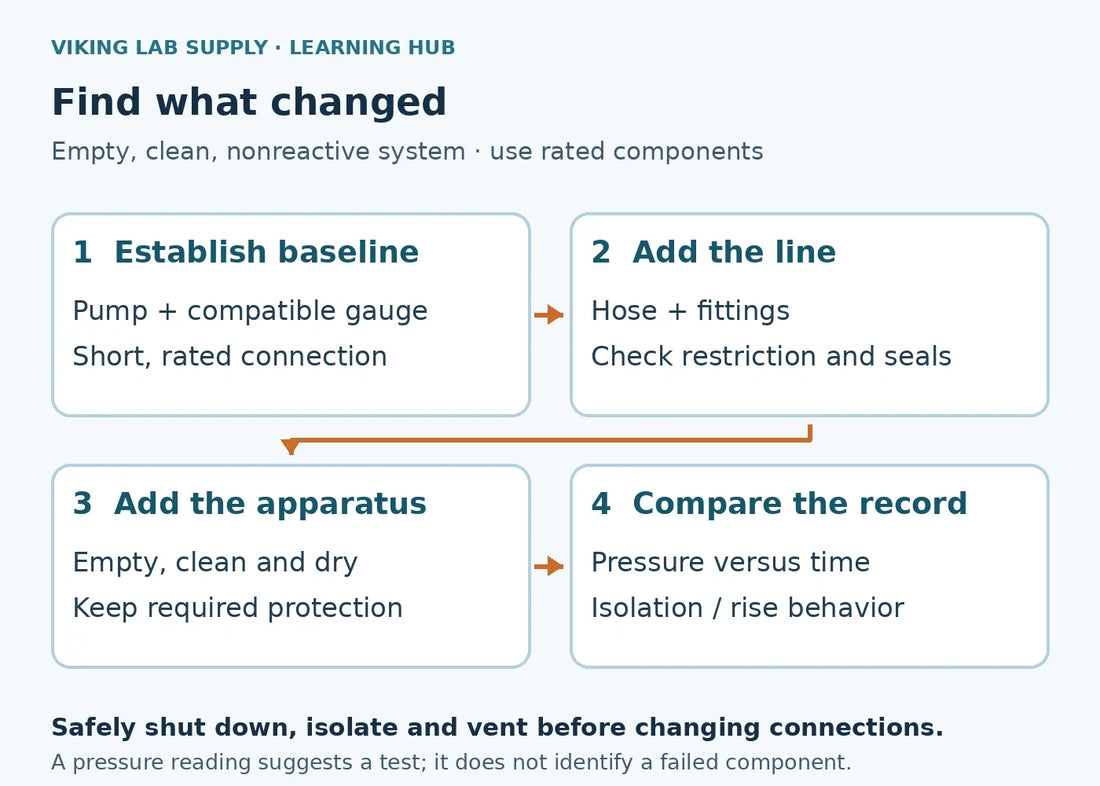

Test one section at a time
Once the baseline is understood, add the connecting line and its fittings as a separate test stage. Then add the empty, clean, dry apparatus. Reproduce initial conditions as closely as possible, and use valves or blanks rated for the service. Always follow the safe isolation and venting sequence before changing components; do not pull hoses from evacuated glass.
A marked deterioration after adding a line narrows the search to the added hose, seals, fittings or flow restriction. Inspect for softened material, crushed walls, sharp turns and unsupported weight. Change one suspect item at a time. Replacing every hose and seal together may restore operation, but leaves little evidence about which component failed or what should be prevented next time.
If the baseline remains good until the vessel is connected, inspect that vessel’s ports, joint condition and approved seals. Residual rinse liquid or moisture may produce a gas load even when the assembly appears dry externally. Allow only drying methods approved for the materials and apparatus; heating a sealed vessel to accelerate drying introduces a new hazard.
A trap can both protect equipment and affect conductance. Compare its clean condition, connection size and any accumulation of condensate. Do not remove required vapor protection merely to obtain a better reading. University guidance distinguishes particle filters, liquid catch vessels, cold traps and chemical treatment because they perform different jobs. [2] A particle filter alone does not capture a volatile gas.
Interpret a pressure-rise test
In a pressure-rise test, an evacuated, suitably rated empty volume is isolated from the pump while its pressure is recorded. Gas entering or being released inside that volume causes the pressure to rise. The test can reveal a problem without identifying the precise location or proving that the gas came through a physical hole. Leybold describes the need to distinguish leaks from gas release. [4,5]
For an approximately constant volume and gas temperature, the net gas load is estimated by q = V × Δp/Δt. Let the connected test volume be 2.0 liters, including gauge and connecting spaces. Suppose absolute pressure increases from 1.0 to 1.6 mbar over 120 seconds. Then q = 2.0 × 0.6/120 = 0.010 mbar·L/s. This is an apparent total gas load for the stated interval, not automatically the rate of an external air leak.
Temperature changes, seal permeation, residual liquid and outgassing can all affect the result. A continuing rise after isolation is therefore evidence to investigate, not a complete diagnosis. Repeating the test after an approved drying cycle, at the same temperature and with the same volume, can help separate hypotheses. A change in the curve may be informative without uniquely proving the mechanism.
The sensitivity of the calculation matters. In a 2.0 liter system, a pressure-difference uncertainty of 0.10 mbar across a 120 second interval contributes about 0.0017 mbar·L/s uncertainty, before volume and timing errors are considered. A small apparent improvement may simply be below measurement resolution. Define acceptance criteria from the intended operation and documented method, rather than borrowing a threshold from an unrelated process.
Evaluate hose, connector and trap specifications
The VLS quarter-inch ID silicone vacuum hose illustrates an important selection boundary. Its listed internal diameter is a sizing reference. The current description does not establish wall thickness, maximum vacuum or chemical compatibility for a particular vapor. Obtain those details before service. Flexibility can make routing convenient while still allowing a poorly supported line to kink or collapse under an unsuitable pressure differential.
The quarter-inch vacuum line coupler is listed as a nylon barbed connector for compatible tubing. Matching the nominal tubing size is only the first check. Verify the actual barb dimensions, retention method, temperature, chemical exposure and pressure limits. A connector sold for vacuum connections does not make the surrounding hose or vessel suitable for every vacuum level.
The borosilicate cold-finger immersion trap is an example of a cooled condensation surface. Its listing does not guarantee complete capture, a specific recovery percentage or a numerical vacuum rating. Select trap temperature and capacity for the actual vapor load, using a documented procedure. Avoid assuming that colder always means safer: condensed material can obstruct a path, and cryogenic traps require specialized hazard controls.
For example, liquid-nitrogen-cooled traps can condense oxygen if exposed to air, creating serious incompatibility hazards with organic residues. [2,3] This guide does not provide a liquid-nitrogen operating procedure. Use trained personnel and the laboratory’s approved trap and shutdown instructions. Identify and manage collected material as chemical waste; an apparently empty trap may still contain hazardous condensate.
Turn observations into a diagnosis
Separate observation from interpretation in the test record. “Vessel pressure increased after the long hose was installed” is an observation. “The hose leaks” is a hypothesis until restriction, permeation, connection condition and the measurement arrangement have been assessed. This distinction keeps the next test focused and prevents an early guess from being repeated as established fact.
Useful records include component identity, hose dimensions and length, seal material, gauge location, pressure units, temperature, pump condition, evacuation time and the isolation interval. Photograph the cold, safe arrangement if permitted. Record exactly what changed between trials. A supplier can respond more effectively to a reproducible comparison than to a report that a setup has “bad vacuum.”
Stop work for cracked glass, damaged fittings, abnormal pump noise or heat, unexpected exhaust, unstable supports or uncertain chemical compatibility. Arrange qualified service or technical advice as appropriate. After a repair, repeat the same baseline and staged checks before returning to process work. Confirm process suitability separately; passing an empty-system test does not establish performance with a continuing vapor load.
Frequently asked questions
Will a larger pump fix a leak?
It may lower pressure under a given gas load, but it does not repair the fault. A restrictive line can also limit the benefit. Identify the source and assess the equipment before changing pump capacity.
Does a pressure-rise test prove where the leak is?
No. It measures behavior of the isolated volume. It does not locate a joint or distinguish every source of gas. Qualified leak-detection methods may be needed.
Can I use any lubricant on a ground joint?
Use only the sealing method compatible with the joint, chemicals, temperature and vacuum requirements. More grease is not a universal remedy. See the glass-joint guide for connection fundamentals.
Is this the same as troubleshooting slow filtration?
No. This tutorial assesses vacuum generation and delivery in an empty apparatus. Filtration also depends on the medium, cake and liquid properties; see the Büchner filtration tutorial.
Technical references
- Leybold, Calculating Conductance Values
- Princeton EHS, Pressure and Vacuum Systems
- University of Illinois, Vacuum Safety
- Leybold, Pressure-Rise and Pressure-Drop Tests
- Leybold, Definition and Measurement of Vacuum Leaks
Prepared as an original Viking Lab Supply educational guide. Product descriptions and source pages checked October 24, 2026. Diagram and numerical examples are original explanatory material. No universal equipment rating or leak-test acceptance criterion is asserted.
