Magnetic Stirrers and Stir Bars: Heated and Non-Heated Mixing

← Viking Lab Supply Learning Hub

A stir bar can look busy while doing surprisingly little useful mixing. The best setup is the one that circulates your sample reliably, at the temperature your procedure actually needs. That takes a sensible match between the stirrer, bar, vessel and liquid—not simply the highest speed on the dial.

This guide explains heated and non-heated magnetic stirring, compares examples from Viking Lab Supply, and walks through bar selection, temperature measurement and common mixing problems.

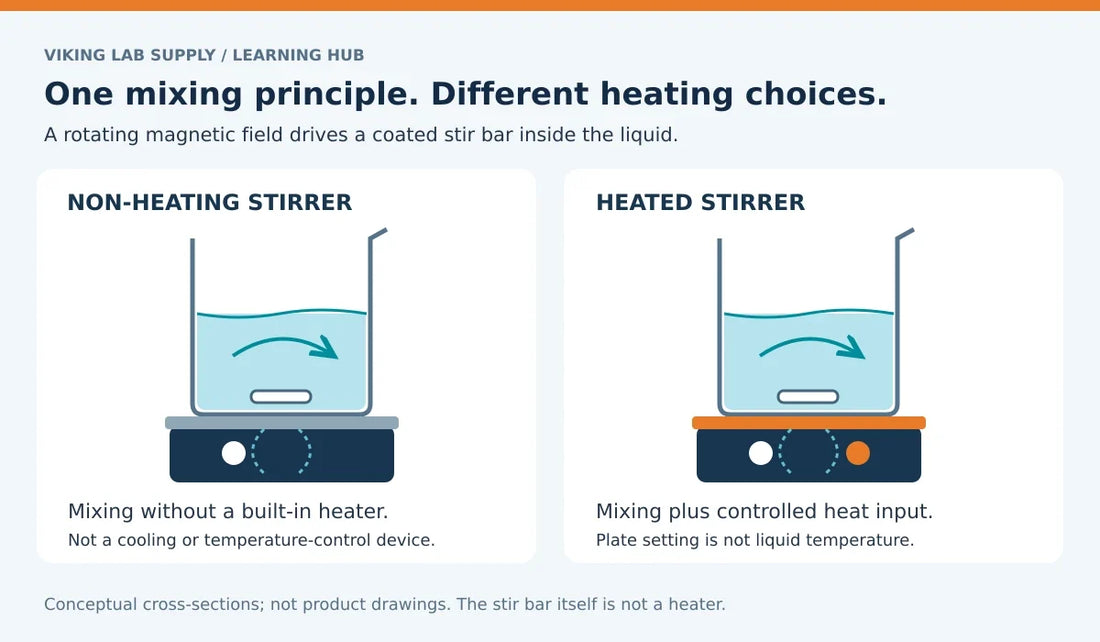

How magnetic stirring works

A magnetic stirrer produces a rotating magnetic field below its working surface. A magnetic stir bar placed inside a suitable vessel follows that field and moves the surrounding liquid. The drive does not need a shaft passing down into the sample, although the bar itself is in direct contact with the liquid.

The bar’s outer coating separates its magnetic core from the sample. VLS offers several PTFE-coated options, including the 30 mm PTFE magnetic stir bar. A coating is a material choice, not a promise of compatibility with every chemical, temperature or cleaning method.

Magnetic coupling is the connection between the drive field and the bar. When liquid drag, speed or geometry prevents the bar from following the field, it can wobble, jump or stop. This is often called decoupling or throwing the bar.

Heated versus non-heated stirring

For heat-sensitive work that requires no heating, a dedicated stir-only instrument avoids the possibility of selecting a heater control by mistake. Penn’s laboratory safety guidance specifically recommends stir-only plates when heat is unnecessary. Even without intentional heating, ambient conditions and equipment operation can affect temperature; verify the sample when that matters.

Compare VLS equipment

These are published VLS listing details, checked October 18, 2026. They are selection references rather than independently measured performance results. Confirm the selected model and current instructions before purchase or operation.

Choose a stir bar and vessel

Start with the vessel’s bottom and opening

The bar needs room to turn without repeatedly striking the wall, and it must pass through the vessel opening for insertion and removal. A flat-bottom beaker, curved flask and tall narrow vessel can behave differently at the same nominal volume. Check the drive manufacturer’s recommended bar dimensions, then assess actual circulation with the intended vessel and liquid.

Use the multi-size borosilicate beaker listing to compare capacities, while allowing headspace for movement, additions and any expected foaming. Beaker graduations are approximate volume references. Choose glassware suitable for the procedure and inspect it before use.

Shape alone does not guarantee low shear, a smaller vortex, better suspension or faster dissolution. Likewise, “rare earth” does not guarantee that a bar will stay coupled in any mixture. Observe performance under the actual conditions. For a closer look at profiles, read our magnetic stir-bar shapes guide.

Interpret scale changes

Copying RPM when increasing volume does not preserve all aspects of mixing. Vessel diameter, liquid depth, bar length, magnetic spacing and viscosity can all change. A Reynolds comparison Re = ρND²/μ helps organize the variables, but a bar-length-based index is not a validated performance correlation for every magnetic setup. If the characteristic length doubles while speed and liquid properties stay fixed, that index rises by a factor of four. Magnetic torque requirements and circulation geometry also change, so the calculation alone cannot select the new speed or certify coupling.

Set up and begin stirring

1. Define the task. Record the liquid, working volume, intended temperature and desired mixing result. Check compatibility, hazards, the instrument manual and your laboratory procedure.
2. Inspect and arrange. Use a stable bench with appropriate clearance. Inspect the unit, cord, vessel and coating. Keep controls accessible and electrical parts dry.
3. Place the bar gently. Lower it into the vessel rather than dropping it onto glass. Add the sample according to the approved procedure and center the vessel over the drive.
4. Verify the heating state. For mixing without heat, use a stir-only instrument where appropriate. If a heated model is permitted, confirm the heater is off and the surface has cooled. Do not infer the heating state from bar movement.
5. Start low and increase gradually. Watch the bar and the bulk liquid. Seek reliable circulation without excessive splashing, foaming or an unnecessarily deep vortex.
6. Monitor and document. Recheck mixing after additions or changes in viscosity. Record vessel, bar, volume, speed setting, duration and measured temperature when reproducibility matters.

Specify a mixing endpoint

For dissolution, record the material, particle condition, solvent composition and endpoint. For suspension, define acceptable settling and sampling consistency. For homogenization, define how concentration uniformity will be measured. These objectives can require different flow patterns. A deep surface vortex is an observation of liquid motion rather than a direct mixing-quality measurement. A useful method comparison reports time to its defined endpoint, temperature and any loss of magnetic coupling.

Understand temperature control

Stirring helps move heat through the liquid, but it does not make every point in the apparatus the same temperature. Warm-up time and gradients depend on the vessel, sample, fill depth, losses to the surroundings and circulation. Never treat a heater’s maximum rating as the sample temperature you will achieve.

A thermometer included with a stirrer may provide a reading without controlling the heater. Closed-loop sample control requires a supported sensor connection and the instrument’s specified control mode. Verify those features rather than assuming them from the presence of a probe or digital display.

Where the method calls for liquid temperature, use a suitable contact sensor at the specified position, with clearance from the stir bar and vessel surfaces. An infrared instrument measures a surface; aiming through ordinary glass does not establish the liquid temperature behind it. See our infrared versus probe thermometer guide.

Heating also changes the consequences of poor stirring. If mixing stops during a temperature-sensitive procedure, follow the procedure’s response plan rather than simply turning the speed higher. Treat the surface and glassware as hot until verified cooled, and do not heat a sealed ordinary vessel. These general-purpose listings do not establish suitability for flammable-vapor atmospheres.

Use energy balance to interpret heating time

For a simplified liquid with no phase change, the energy needed for a temperature rise is Q = mc_pΔT. A hypothetical 0.50 kg water-like sample with c_p = 4.18 kJ/(kg·K) and a 20 K rise requires 41.8 kJ. At a hypothetical net 100 W into the liquid, the idealized time is 418 seconds, about 7 minutes. Real heating also warms the vessel and loses energy to the surroundings. The heater's electrical rating is not the net power entering the sample. This calculation cannot predict a specific VLS unit's heating time, but it explains why sample mass and thermal losses must accompany any comparison.

Separate monitoring control and protection

A monitoring probe reports temperature. A control probe supplies feedback to an instrument designed to use it. An independent protective device provides a separate response to an unsafe condition when the system is designed accordingly. These roles are not interchangeable. A displayed number or a timer does not prove the presence of independent overtemperature protection. Verify the exact model's sensor input and control mode, and position the probe to measure the sample the method actually specifies. Penn's safety guidance documents why a heating control in the off position is not the same as physical disconnection from its electrical source.

Real laboratory examples

These examples explain equipment choices, not universal recipes. Adding heat can change a material or process, so it should be a deliberate method requirement rather than a shortcut for a poorly matched stirrer.

Troubleshoot poor mixing

Do not add an improvised spacer or thick insulating pad between vessel and drive without manufacturer approval. Increasing separation can weaken coupling and can alter heat transfer.

Qualify the combination

Use representative material and record the vessel, working volume, bar dimensions, speed setting, measured sample temperature and duration. Include observations at the most demanding planned condition, such as the highest viscosity or greatest solids loading. If the bar decouples, a further speed increase may worsen the problem. Reassess geometry and drive capability, or evaluate a suitable overhead method when the task requires it. Retain qualification results with the procedure so replacement hardware or a larger batch triggers an evidence-based review.

Recover, clean and inspect

After mixing, follow the required shutdown and cooling sequence. Recover the bar only when it can be handled safely. The 10-inch PTFE retriever provides a coated liquid-contact option; the 16-inch retriever offers additional reach, but its exterior compatibility still needs checking before immersion.

Guide the retriever gently toward the bar and withdraw it without striking the glass. Recover the bar before pouring when the method permits, so it does not fall into a drain, waste container or receiving vessel. Clean both tools between samples with a method suited to their materials and the residues.

Check the coating for cracks, deep scratches, distortion and other damage that could expose the core or retain contamination. Routine washing is not validated decontamination or sterilization. Follow documented requirements if either is needed; PTFE coating alone does not establish an autoclave cycle or a temperature rating for the complete bar.

For vessel-care basics, read cleaning and inspecting laboratory glassware.

Build your equipment checklist

Drive and heat: compare the hot-plate mixer, 10 L mixer and stirring mantles against the task.

Vessel and bar: select appropriate borosilicate glassware and a bar with suitable clearance, coating and magnetic behavior.

Monitoring and support: provide the sample-temperature measurement and support hardware the procedure needs. See the stand, boss head and clamp guide before selecting mounting components.

Recovery and care: include a compatible stir-bar retriever and a cleaning plan.

Working limits: verify voltage, vessel footprint, working volume, speed, temperature limits and any restrictions on unattended use. A timer alone is not an independent safety system.

Browse the complete VLS Lab Heating, Stirring & Mixing Equipment collection. Product examples in this guide are individual items, not a certified compatible kit.
