Laboratory Condensers: Cooling Water, Reflux and Heat Load
Approximately 9 minutes to read. Explore the Learning Hub
A condenser can be full of cold water and still fail to control a laboratory vapor stream. The cause may be excessive heating, an unsuitable flow path, poor drainage, or a cooling supply that warms during the run. Understanding these possibilities is more useful than choosing glassware by length alone. This guide explains how to assess a conventional water-jacketed condenser for general laboratory reflux and distillation.
By the end, you should be able to distinguish coolant flow from vapor flow, explain why orientation matters, estimate heat carried away by cooling water, and recognize conditions that require stopping an operation. The calculations below are teaching examples, not measured performance data or operating settings for a particular product. Use an approved procedure and documented equipment limits for actual work.
What a condenser actually controls
Condensation transfers energy from a vapor into a cooler surface. Vapor touching that surface loses sensible heat as it cools and latent heat as it becomes liquid. The surrounding coolant must then carry that energy away. Condensation therefore depends on a chain of heat-transfer steps, rather than simply the presence of a jacket. Surface area, wall condition, vapor composition and cooling conditions all affect the result.
Reflux and distillation use this process for different purposes. In reflux, liquid returning from a vertical condenser goes back into the original vessel. In a collecting distillation arrangement, condensate travels toward a separate receiver. These arrangements can use related glassware, but their drainage requirements differ. A configuration that pools liquid or sends it toward the wrong vessel does not become suitable merely because its joints fit.
A heater setting does not equal the heat entering the vapor. Some supplied energy warms the vessel or escapes into the surroundings. Once boiling is established, increased heat input often produces more vapor rather than a large temperature increase in the boiling liquid. The cooling system must accommodate the resulting vapor load. This is why turning up a heater can overwhelm a condenser even while the displayed temperature seems unchanged.
The first task is to define what success means: stable reflux with controlled solvent inventory, or collection at a reproducible rate into an appropriate receiver. Establish the observation and stop criteria before starting. Do not use smell or an exposed hand as a detector of escaping vapor. MIT’s reflux teaching resource provides a useful introduction to the distinction between returning solvent and simply heating an open vessel. [1]
Trace the vapor and coolant paths

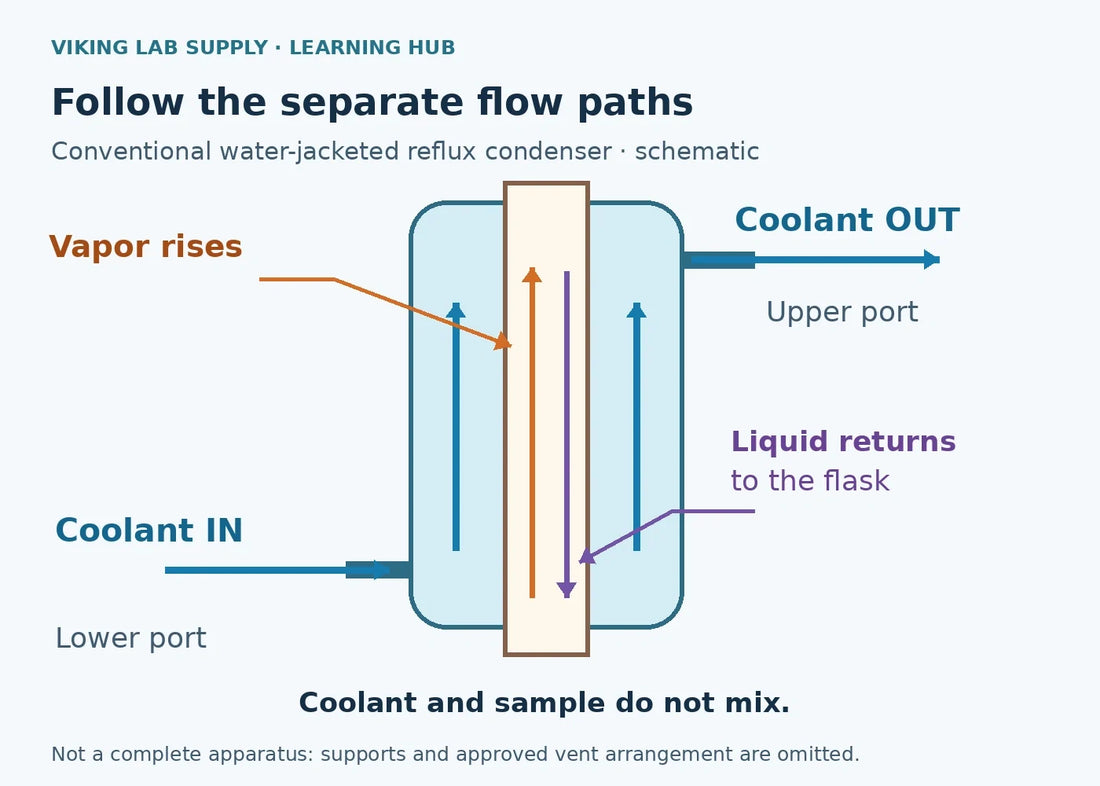

For a conventional water jacket, connect the inlet at the lower jacket port and the outlet at the upper port. Filling upward helps displace air and keep the cooling surface wetted. University of Rochester’s laboratory guidance describes this bottom-to-top arrangement. [2] With an inclined condenser, identify the actual lower and upper ports after it has been positioned, rather than assuming a particular hose is always the inlet.
Coolant belongs in its designated cooling passage. In a straight jacketed condenser, vapor passes through the central tube while water circulates outside it. Coil-shaped glassware needs closer inspection: some designs carry vapor through a coil and others circulate coolant through an internal coil. Chemglass explicitly distinguishes these architectures. [3] Identify passages from the manufacturer’s drawing; appearance alone can be misleading.
A freely flowing outlet is essential. A kinked drain can cause the jacket to experience supply pressure even though the experiment is otherwise open to atmosphere. Route hoses without sharp bends and secure them so they cannot whip loose or pull on a glass sidearm. Make the connections while the glassware is cool. Never force a tight hose onto a fragile barb by levering against the condenser body.
A reflux assembly must have the pressure-control or vent arrangement specified by its approved procedure. Do not cap a heated assembly to prevent solvent loss. A drying tube, gas connection or treatment device can introduce restrictions of its own; none is a substitute for an engineered pressure-relief assessment. Cooling failure should lead to the planned shutdown response, not improvised sealing.
Select the condenser for its duty
Start with the fluid, operating pressure, anticipated vapor load and available cooling temperature. A useful specification includes both the coolant supply conditions and the intended condensation duty. Length can be one selection variable, but cannot stand in for a tested thermal rating. A short condenser under a small load and a long condenser receiving warm coolant may behave very differently.
Liebig-type straight passages make the vapor and drainage route easy to inspect. Bulbed Allihn designs provide a different internal surface geometry and are commonly offered for reflux; Chemglass identifies its Allihn model as a reflux condenser. [4] This is a description of design intent, not proof that one style always performs better. Consider drainage, pressure drop, cleanability and manufacturer guidance alongside surface area.
VLS lists a 100 mm reflux condenser with a 24/40 connection. The listing establishes a compact condenser section and joint designation, but does not supply a universal maximum heat load, coolant flow setting or operating-pressure rating. Treat those omissions as information to resolve before service. Do not infer that a 100 mm condenser can control every experiment performed in a particular flask capacity.
Check complementary joint orientation, overall apparatus height and access for independent support. Our glass-joint compatibility guide covers connection geometry; the stand and clamp tutorial explains support loads. Those subjects support condenser selection, but neither a matching taper nor a secure clip establishes a thermal or vacuum rating.
Prepare and check the cooling circuit
Before adding material, inspect the glass for cracks, damaged sealing surfaces and stressed sidearms. Reject damaged components. Confirm compatibility of the coolant, tubing and seals with their own exposure conditions. Cooling-water hoses are not automatically suitable vacuum hoses, and the reverse is also true. Keep electrical connections away from possible drain or hose leaks.
Support the apparatus so that attaching a hose does not move it. Leave enough hose slack for the intended adjustment, but avoid long unsupported loops. Where a recirculator is used, verify the required coolant, reservoir level, cooling capacity at the intended setpoint and pump compatibility. A setpoint by itself does not show that the unit can remove the experiment’s heat load.
With the assembly cool and the heat source off, establish the permitted coolant flow and check the outlet at its secured destination. Observe the jacket filling and inspect every connection for leakage. Record inlet temperature and flow by suitable instruments when the procedure requires quantitative cooling control. Do not increase supply pressure simply to eliminate a visible air pocket; investigate the routing and manufacturer requirements.
Plan for loss of water, blocked drainage and loss of electrical power. Decide who will respond and how the heat source will be disabled without handling hot glass. Unattended work requires the laboratory’s approval and suitable protection systems; a quick successful setup test is not authorization to leave a boiling apparatus running.
A worked cooling-water calculation
A practical energy balance estimates the heat gained by the coolant: heat rate = mass flow × specific heat capacity × temperature rise. For water near room temperature, use an approximate specific heat capacity of 4.18 kJ per kilogram per kelvin and density of 1.00 kilogram per liter for this teaching calculation. These approximations are unsuitable for precision calorimetry or other coolant mixtures.
Suppose a measured water flow is 0.40 liters per minute, with an inlet temperature of 18°C and an outlet temperature of 23°C. The temperature increase is 5 kelvin. Convert the flow first: 0.40 kg/min ÷ 60 = 0.00667 kg/s. The estimated heat gain is 0.00667 × 4,180 × 5 = approximately 139 watts. The arithmetic describes the assumed measurements, not a recommended flow or a rating of the VLS condenser.
If the water warms by only 2 kelvin at the same flow, the estimated heat gain becomes about 56 watts. That does not automatically mean condensation improved or worsened. The vapor generation rate may have changed, heat may be going elsewhere, or the temperature readings may be poor. Measure inlet and outlet at comparable locations with sensors suited to flowing liquid, allowing time for a stable response.
The calculation also has limitations. Ambient heat exchange with long hoses, sensor offsets and fluctuating flow can bias the result. A coolant energy balance cannot prove complete vapor capture. Combine it with an appropriate material balance and safe process observations. For measurement technique, see infrared versus probe thermometers. A surface reading on a hose should not be reported as the bulk coolant temperature.
Observe, stop and shut down
During operation, record the variables that can explain a change: time, heating control, coolant inlet and outlet temperatures, measured flow, receiver collection if applicable, and any change in the visible condensation region. Use comparable observation intervals. A clear laboratory record distinguishes a stable configuration from a setup that appears acceptable during a brief glance.
In vertical reflux, a condensation region moving progressively upward can indicate decreasing cooling margin or rising vapor load. It is a warning to evaluate the approved stop criteria, not a calibrated measurement of condenser capacity. If vapor escapes, coolant stops, hoses leak, glass shifts, or liquid begins pooling unexpectedly, disable heating using the planned controls and follow the laboratory’s response procedure.
Keep the required cooling and ventilation operating during the cooling phase as directed by the procedure. Wait until the apparatus has reached a safe handling temperature before disassembly. Never loosen a hot ground joint to troubleshoot flow. Collect residues and rinses according to the actual chemicals present; a cooling-water circuit should remain separate from chemical waste. Investigate any suspected cross-leak before returning the condenser to service.
Troubleshooting
If the jacket does not fill, first verify the designated inlet, outlet and installed orientation. A trapped bubble, restricted line or incorrect passage connection needs correction while the apparatus is safely shut down. If a hose comes off, do not grab the wet hot glass; stop heat and manage the spill under the laboratory procedure before rebuilding the connection.
If condensation becomes insufficient over time, compare inlet temperature and vapor generation with the beginning of the run. A warming recirculator reservoir suggests a different investigation from a progressively blocked outlet. If a condenser collects liquid in an unintended pocket, inspect orientation and geometry instead of assuming that greater coolant flow will restore drainage.
If liquid appears in the coolant, or coolant enters the sample, stop and isolate the equipment safely. A crack or internal defect may connect the two passages. Mark the component out of service and assess contamination of the cooling loop. Replacing the coolant without investigating the glass would leave the underlying failure unresolved.
Frequently asked questions
Is the coldest possible coolant always best?
No. Select temperature for the substance, condenser and procedure. Unnecessary chilling can create freezing, viscosity or thermal-stress problems. Evaluate the whole cooling circuit rather than applying a universal setpoint.
Does a 24/40 condenser match every laboratory flask?
Only compatible complementary joints of the appropriate standard can be considered for mating. Verify the actual components, support geometry and operating limits. Similar nominal vessel capacity provides no assurance of connection size.
Can the cooling jacket be pressurized to improve performance?
Do not exceed documented jacket limits. A restricted outlet can expose glass to supply pressure. Heat-transfer improvement must come from an assessed design and procedure, not an improvised pressure increase.
Can I reuse this calculation for glycol?
Use the mixture’s documented density and specific heat at the relevant concentration and temperature. Substituting water properties can produce a misleading estimate.
Technical references
- MIT OpenCourseWare, Refluxing a Reaction
- University of Rochester, Not Voodoo: Simple Distillation
- Chemglass, Reflux Condensers, Coil Type
- Chemglass, Allihn Condensers
Prepared as an original Viking Lab Supply educational guide. Product descriptions and source pages checked October 24, 2026. Diagrams and worked examples are original explanatory material. Equipment examples do not constitute a complete apparatus specification.
