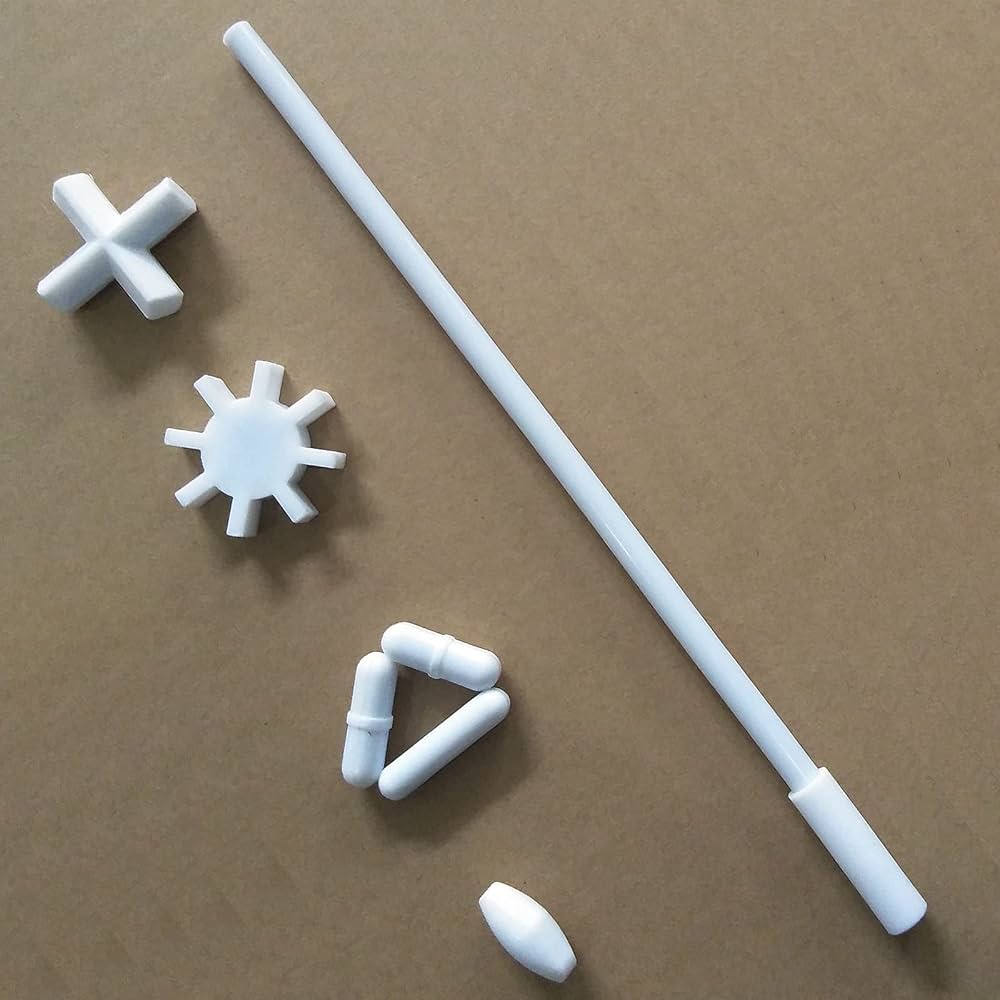

Various magnetic stir bar shapes and their uses displayed on a brown background.

Magnetic Stir Bar Shapes and Their Uses

Full tutorial: approximately 7 minutes to read. Use the table of contents to go directly to a topic.

Stir-bar shape changes the contact geometry and liquid motion in a magnetic mixing system. Its usefulness depends on bar dimensions, vessel base, magnetic coupling, viscosity and the required mixing endpoint.

Compare profiles without assuming a winner

Many laboratory stir bars are PTFE-coated, including the linked VLS examples. The coating separates the magnetic core from the sample, but compatibility still depends on the actual materials, temperature and cleaning conditions.

Cylindrical or straight profiles: compare length and diameter with the vessel bottom and drive magnet.

Octagonal profiles: flat faces alter contact and liquid motion. Shape alone does not establish a useful viscosity range.

Pivot-ring profiles: the central contact region changes how the bar rests and rotates; check stability in the selected vessel.

Cross and star profiles: compare circulation, suspension and coupling experimentally. Do not infer low shear or reduced vortex formation from the name.

Flea profiles: available in different sizes. Confirm the actual dimensions, neck clearance and drive compatibility rather than assuming every flea bar suits a small vial.

Compare torque with viscous resistance

A rotating bar follows the drive only while magnetic torque can overcome the resistance of the liquid and contact with the vessel. Increasing viscosity, changing the bar or increasing its distance from the drive changes that balance. The appearance of the surface cannot quantify the available torque. A stable bar at one temperature can decouple after cooling or after solids are added. Check the complete mixture through its expected operating range; a water trial is a preliminary check rather than a qualification for a viscous formulation. IKA discusses distance, viscosity and volume as interacting selection factors.

Use dimensionless reasoning carefully

A mixing Reynolds number is often expressed as Re = ρND²/μ, where ρ is density, N is rotational frequency in revolutions per second, D is a characteristic rotating length and μ is dynamic viscosity. For magnetic bars, choosing bar length as D provides a comparison index rather than a universal impeller correlation. In an illustrative water-like liquid with ρ = 1000 kg/m³ and μ = 0.001 Pa·s, a 0.030 m bar at 600 RPM has N = 10 s⁻¹ and Re = 9000. With viscosity increased to 0.100 Pa·s at unchanged conditions, the index falls to 90. This calculation shows the size of the viscosity effect; it does not classify every magnetic vessel's flow regime or prescribe an operating speed.

Separate mixing time from dissolution time

Mixing time measures how quickly a tracer or composition difference becomes acceptably uniform. Dissolution time also depends on solubility, particle size, temperature and solid surface area. A bar can circulate the liquid while undissolved solids remain because the solution is saturated. Conversely, a clear liquid can contain a persistent concentration gradient. Define an endpoint before comparing shapes. In a compatible nonreactive trial, compare samples at defined locations or use a suitable tracer measurement. A vortex alone is not evidence of uniformity.

Design a reproducible comparison

Keep vessel internal diameter, working volume, liquid composition and temperature fixed when comparing bar profiles. Record the full bar dimensions, coating condition, speed setting and whether actual speed was measured. Compare time to the defined endpoint, observed decoupling and splashing. If a longer bar wins only after changing the volume or vessel, the result belongs to the new combination. Do not infer lower shear or better particle suspension from shape alone. For a scale change, test the new geometry rather than copying RPM: both the characteristic length and liquid circulation path have changed.

Select and recover a bar

Confirm that the bar passes through the opening and rotates without striking the walls. Lower it gently into glassware, start at a low setting and increase only within the procedure. Use a compatible coated retriever after the required cooling and shutdown steps; avoid striking the vessel.

For heating options, setup and temperature monitoring, use the magnetic stirrer equipment guide.

Magnetic stirring checks: bar clearance, coupling, liquid viscosity, and vessel geometry
Original educational schematic. Use the product instructions and the procedure for specific limits.

Equipment examples

These photographs identify individual catalog items. They do not establish a tested assembly or replace product-specific documentation.

PTFE Magnetic Stir Bar 30mm/1.18in
PTFE Magnetic Stir Bar 30 mm/1.18in

A 30 mm option for suitably sized vessels; confirm clearance and coupling.

Magnetic Star Stir Bar for magnetic mixing
Magnetic Star Stir Bar for Magnetic Mixing

The listed star-shaped profile provides another geometry to evaluate; it does not guarantee gentle mixing.

Half-inch PTFE micro magnetic stir bars in assorted colors
Spin Bar Teflon Flea Half Inch

A compact half-inch option for appropriately small vessels. The picture is enlarged for identification.

10-inch PTFE magnetic stir bar retriever for laboratory use
Magnetic PTFE Stir Bar Retriever 10in

Retrieve compatible magnetic bars without pouring out the liquid solely for recovery.

Distinguish a speed setting from a speed measurement

A numbered dial or displayed setpoint describes what the controller is asked to do. It does not necessarily provide an independent measurement of the bar's actual rotation under load. When actual rotational frequency matters to a comparison, use an appropriate measurement method and document it. If only a setting is available, report it as a setting. This small distinction makes a comparison easier to interpret and avoids giving an unverified number the status of measured evidence.

Run a controlled stir-bar comparison

Start with the purpose of the mixing step. A dissolution task, a suspension task and a temperature-uniformity task can favor different combinations of bar, vessel and speed. Write an observable endpoint before testing. For example, a compatible tracer comparison might require agreement between measurements from two defined locations. A suspension evaluation might assess whether solids remain distributed during a specified sampling interval. The endpoint should reflect the experiment rather than how impressive the vortex looks.

Inspect candidate bars before use. Check the coating for cuts, embedded particles or roughened areas and verify that each bar can enter and leave the vessel without force. Identify the dimensions as well as the profile. Comparing a long cylindrical bar with a much shorter octagonal bar does not isolate shape. It compares two complete geometries, which may still be useful operationally if the difference is described accurately.

Position the vessel consistently over the drive. Add the same compatible test liquid to the same working volume and establish a defined starting temperature. Begin at a low speed and increase gradually within the equipment's documented conditions. Record whether rotation remains coupled, whether the bar strikes the wall, and whether splashing or air entrainment occurs. Stop and reassess an unstable arrangement rather than continuing to raise the setting.

Repeat promising conditions to determine whether the apparent improvement is reproducible. An isolated fast result may reflect a different initial solid distribution or a warmer sample. Keep the starting state, addition sequence and observation method as consistent as practical. If the real mixture changes viscosity during the operation, evaluate the relevant stages rather than qualifying only its easiest initial condition.

Interpret results without overclaiming

Imagine two bars reach the same tracer endpoint in 45 and 60 seconds under otherwise comparable conditions. The observed difference is 15 seconds for that test. It does not establish that the faster bar will outperform the other in a larger vessel, a denser suspension or a cooling formulation. Report the vessel, liquid, temperature, working volume and speed alongside the result so the comparison has a defined scope.

Likewise, a bar that stays coupled at a higher displayed speed is not automatically the better choice. The useful question is whether it achieves the required endpoint reliably without creating unwanted effects. Excessive vortexing can complicate a measurement through air entrainment or evaporation. The best operating setting may therefore be below the highest stable speed, especially when the analytical objective depends on consistent sampling.

Troubleshooting unstable rotation

If the bar chatters or jumps, first reduce the setting and bring the system to a safe state. Check centering, vessel-bottom geometry, bar clearance and drive-to-bar distance. A displaced vessel or an incompatible base can create a coupling problem that no change in nominal shape will solve. Re-establish the basic geometry before comparing replacement bars.

If rotation fails only after additions, examine what changed. Increased viscosity raises resistance, solids can obstruct motion, and the liquid level may alter circulation. Temperature can change several properties simultaneously. Document the point at which performance deteriorates and compare that observation with the mixture's composition and physical state. This is more informative than recording only that the stirrer was inadequate.

If solids remain in a quiet region despite stable rotation, reassess the mixing endpoint and circulation pattern. A bar spinning beneath a settled bed may be moving the surrounding liquid without adequately suspending the solids. Increasing speed indiscriminately can create new problems. Consider whether a different vessel, bar geometry or appropriately selected alternative mixing system is needed, then evaluate the new arrangement against the same endpoint.

Frequently asked questions

Is one profile always best for viscous liquids?

No universal profile ranking follows from the shape name. Dimensions, drive torque, distance, vessel geometry and the mixture's behavior interact. Consult equipment guidance and compare performance under the actual intended conditions.

Can a coated bar contaminate a sample?

Contamination can arise from retained residues, a damaged coating or an unsuitable cleaning method. Inspect the surface and use a cleaning procedure appropriate to both the bar and the analytical task. A visually clean bar does not establish trace-level cleanliness.

Does faster rotation prove faster dissolution?

Not necessarily. Dissolution can be limited by solubility, particle properties or temperature as well as transport. If the solution is already saturated, a larger vortex cannot make an unlimited amount of solid dissolve. Examine the chemistry alongside the mixing conditions.

What should be recorded for repeat use?

Record bar shape and dimensions, vessel identity, working volume, mixture composition, temperature, speed setting and endpoint. Include any decoupling or settling. These details turn a successful trial into an operating description another trained worker can evaluate.

Technical references

References explain general principles. Model-specific specifications apply only to the equipment identified by its manufacturer.
