Büchner Filtration: Choosing Funnels, Filter Paper and Supporting Equipment
← Viking Lab Supply Learning Hub
Understand filtration components, match filter paper to the support plate, and troubleshoot slow flow without guessing at compatibility.
What filtration does
Filtration separates suspended solids from a liquid by passing the mixture through a suitable medium. In gravity filtration, the liquid's weight drives flow. In vacuum filtration, a pressure difference assists it. Neither method removes every dissolved substance: a clear filtrate can still contain dissolved salts or other solutes.
Start with the sample and the goal. Are you collecting a solid, clarifying a liquid, or preparing a sample for further analysis? The answer influences filter grade, collection volume and handling. This guide explains equipment selection; the operating method must come from an approved procedure for the particular materials.
Choose the funnel and paper together

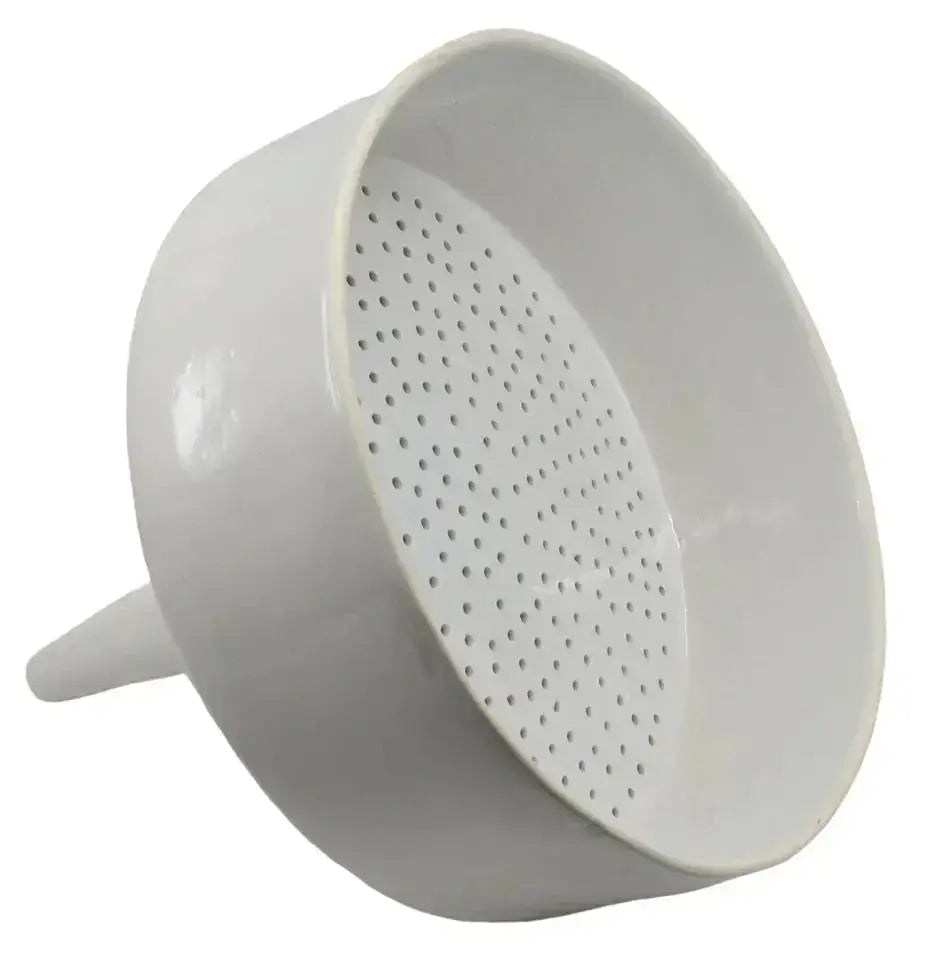

The 200 mm ceramic Büchner funnel provides a broad support surface. Its nominal size does not establish the exact paper diameter you need. Measure or confirm the usable perforated plate and select paper that covers it without folding up the walls or leaving bypass gaps.
An 11 cm filter paper is a separate size option for appropriately sized equipment, not a claimed match for the 200 mm funnel. “Slow” is not a numerical micron rating. If your method specifies particle retention, obtain a documented grade rather than inferring it from the description.
| Selection question | What to confirm |
|---|---|
| Paper fit | Usable plate diameter, complete coverage and flat seating |
| Retention | Documented filter grade for the target particles |
| Receiving vessel | Adequate headspace and documented vacuum suitability |
| Seals and tubing | Dimensions, chemical compatibility and pressure limits |
Understand the complete system
Mixture enters funnel
Solids remain on filter
Filtrate collects in
rated receiving vessel
Suitable trap protects
the vacuum source
Vacuum source provides
pressure difference
Conceptual illustration, not a complete assembly drawing. Supports, seals, venting and hazard controls are omitted.
The funnel is only one component. Use a receiving vessel specifically suitable for the intended reduced-pressure service, a matching adapter, suitable tubing and a trap selected for the materials. An ordinary storage bottle is not a substitute for a vacuum-rated vessel. University of Wisconsin's filtration teaching module explains the trap's position between the receiving flask and vacuum source.
Troubleshoot slow flow logically
Check the filter surface for loading, then check sealing, tubing restrictions and the approved vacuum conditions. A thick filter cake or viscous liquid can slow flow even when the apparatus is intact. Increasing vacuum indiscriminately may worsen compaction or exceed a component's limits.
For transfer and mixing before filtration, compare the 250 mL beaker and 500 mL beaker. These are transfer vessels in this context, not vacuum receivers. A glass stirring rod may assist a compatible transfer method.
Selection checklist and related reading
Confirm filter fit and grade, receiving capacity, pressure ratings, compatibility, supports and the facility's operating procedure before selecting a system. For a larger format, compare the 18-inch tabletop Büchner funnel and its listed 18-inch filter paper; confirm the actual plate configuration and required retention grade.
Read our companion guide on stands, clamps and supports.
Technical reference
University of Wisconsin–Madison: connecting a vacuum-filtration trap. Product-specific limits must be checked separately.
