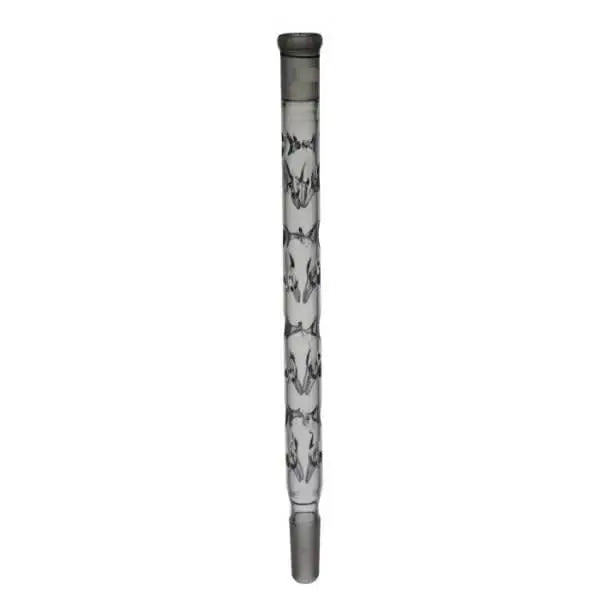

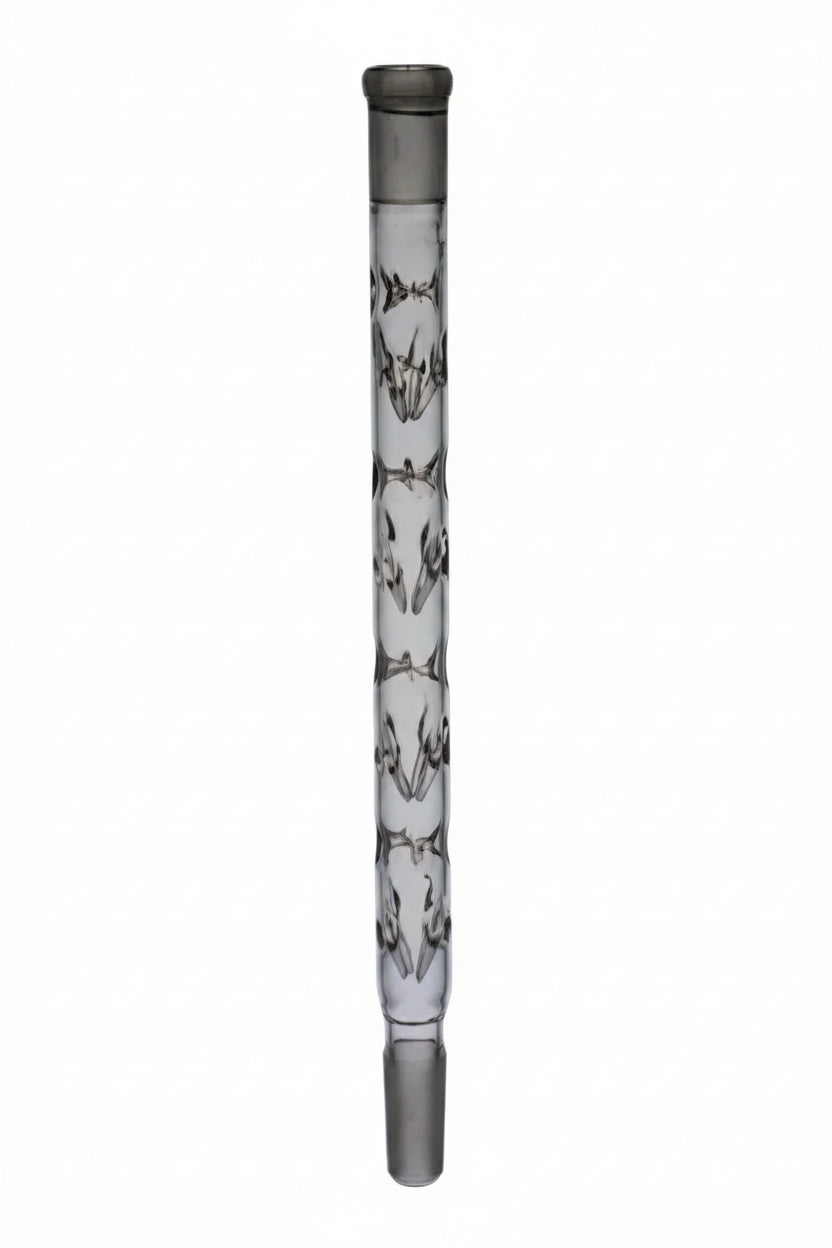

300 mm Borosilicate Vigreux Fractionating Column | 24/40

The 300mm Vigreux Fractionating Column 24/40 is a borosilicate laboratory distillation component designed to provide additional internal surface area between a boiling vessel and downstream condenser or distillation head. Its approximately 300 mm column length and 24/40 ground-glass connections make it suitable for compatible fractional-distillation assemblies.

A Vigreux column contains internal indentations that increase vapor-liquid contact compared with a plain open glass tube. This geometry can support repeated condensation and revaporization within an appropriately operated system. Separation performance, however, depends on mixture composition, heating rate, column insulation, reflux behavior, operating pressure, and apparatus configuration; the column alone does not guarantee a particular purity or separation efficiency.

Before installing the 300mm Vigreux Fractionating Column, verify the 24/40 joint size and orientation of the mating components. Keep the column properly aligned and supported so the ground joints are not carrying unnecessary side load. A taller glass assembly may require additional clamping to remain stable.

Inspect the full column length, internal indentations, and ground joints for chips, cracks, deep scratches, impact damage, or sealing-surface defects before use. Avoid inappropriate thermal shock and confirm chemical compatibility for the materials involved. If operating under reduced pressure, evaluate the entire apparatus and do not assume an undocumented vacuum rating.

The 300mm Vigreux Fractionating Column 24/40 adds a fractionating section to compatible laboratory distillation systems. Browse related condensers, flasks, adapters, and glassware in our Borosilicate Glass Laboratory Equipment collection.
